IEC 60335-2-7 clause 18.101 Washing Machine Door Endurance Tester
IEC 60335-2-7 Clause 18.101 Washing Machine Door Endurance Tester 0 - 50mm Stroke Adjustable
Standard

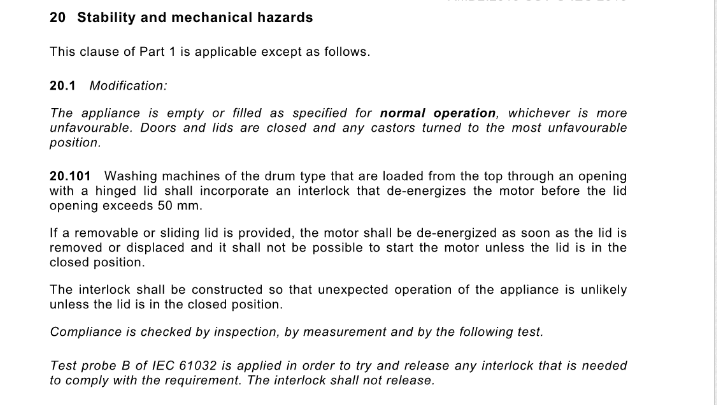

IEC 60335-2-7 household and similar electrical appliances – safety: part 2-7:particular requirements for washing machines, clause 18.101and clause 22.104; IEC 60335-2-11 household and similar electrical appliances – safety: part 2-11:particular requirements for tumble dryers, clause 20.101.
Application
The device is used for mechanical endurance test to doors of washing machine and tumble dryer.
Test sample
Washing machine, tumble dryer
Feature
The device uses the MITSUBISHI PLC control, 7 inch color touch screen operation. Built in voltage regulator, can guarantee the rated voltage input. The equipment is composed of an electric control cabinet, a sample holder and two mechanical hand mounted on the sample holder (step motor drive). The machine frame is made of high grade aluminum alloy profile, and the mechanical hand is respectively installed on the beam and the supporting column of the frame, can satisfy left open door and the upper door test to different sizes washing machine.
Parameters:
| Control | advanced PLC |
| Display | true color liquid crystal display (7 Inch Touch screen) |
| Frame structure | High grade aluminum profile |
| Power supply | AC 220V 50HZ ( can be customed) |
| Manipulator | Two, side manipulator and upper manipulator. Replaceable vacuum suction and gripping device. |
| Auxiliary mechanism | 0-50mm stroke adjustable |
| Floor adjustment mechanism | to adjust the sample level, tilt |
| Test times | 0-999999 preset, automatic stop when test time finished |
| Open/Close time | 0-9999S preset |
| Open/Close rate | Adjustable |
| Open angle | Side manipulator 0-180°, upper manipulator -30-90° |
| Station | Two station(left open and upper open) |

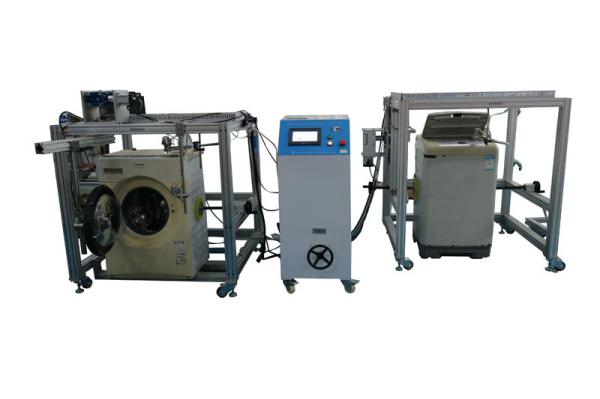

Picture for reference:
