IEC 60335-1 Home Appliance Testing Equipment Test Probe 13 Of IEC 61032

Name: IEC 603351 Home Appliance Testing Equipment Test Probe 13 Of IEC 61032
Brand: HongCe
Price: 1 USD

Wholesale IEC 60335-1 Home Appliance Testing Equipment Test Probe 13 Of IEC 61032 from china suppliers

Brand Name : HongCe

Model Number : HT-I09

Certification : Calibration Certificate(cost additional)

Place of Origin : China

MOQ : 1 set

Price : Negotiatable

Payment Terms : T/T

Supply Ability : 10 Sets per month

Delivery Time : 5 days

Packaging Details : Plywood

product name : Test Probe 13 of IEC 61032

Usage : Home Appliance Testing Equipment

Standard : IEC 60335-1, IEC 61032

pin length : 15mm

Baffle diameter : 25±0.2mm

Finger material : stainless steels

handle material : nylon

name : short pin test probe

Contact Now

IEC 60335-1 Home Appliances Testing Equipment Test Probe 13 of IEC 61032

Standard of Electrical Appliance Testing Equipment:

IEC 60335-1: 2020 Household and similar electrical appliances – Safety – Part 1: General requirements clause 8.1.2;

IEC 61032 Protection of persons and equipment by enclosures –Probes for verification figure 9

Application of Test Probe 13 of IEC 61032:

Test probe 13 of IEC 61032 is applied with a force not exceeding 1 N through openings in class 0 appliances, class II appliances and class II constructions, except for those giving access to lamp caps and live parts in socket-outlets.

This pin is intended to verify the protection against access to hazardous live parts in class 0 equipment and class II equipment (see IEC 60536).

Parameter of Test Probe 13:

Model/ Parameter	HT-I09
Item Name	Short test pin probe
Metal pin tip diameter	Ф3 (0, -0.05)
Metal pin tail diameter	Ф4 (0, -0.05)
Metal pin length	15 (0, -0.1)
Baffle diameter	Ф25±0.2
Baffle thickness	4
Handle diameter	Ф10
Handle length	20

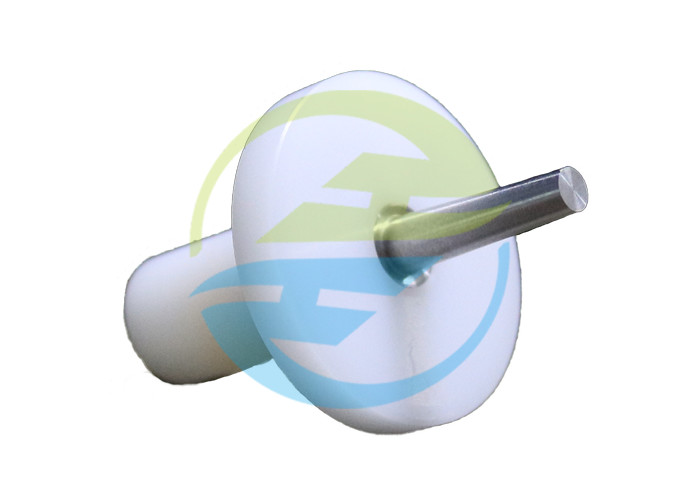

IEC 60335-1 Home Appliance Testing Equipment Test Probe 13 Of IEC 61032
