1100N Plug Bolt Compressive Strength Testing Machine AC220V 50HZ BS1363.1

Plug Bolt Stress Strength Testing Machine

Product details:

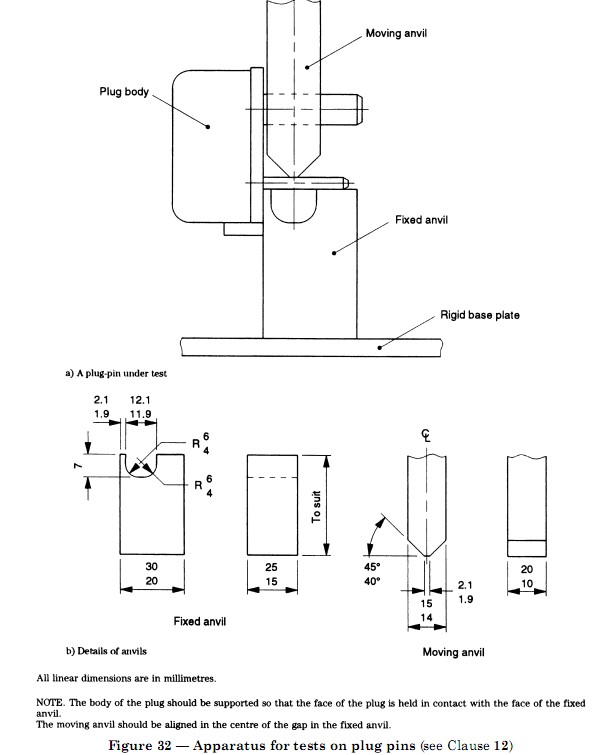

It is designed and manufactured according to BS1363.1 standard 12.9.4 fig 32 which can be used to test the stress strength of solid latch and non-solid pins and insulation protection door open the device (ISODS).The device is with heavy weight of 1100N. And this device can be divided into three parts which can meet with the stress strength test need of each latch. This machine adopts motor drive whose speed is adjustable. With encoder to display and control the motor shaft displaced downward, the operating is precision. The digital sensor pushed Rally, can display peak and static push pull, and with print output ports, the recorded value is printable; the movable measured drills and motor shaft action-released can be switched by one button.

Technical and environment requirements:

Working power: AC220V 50HZ

Standard weights: 1x300N, 1x400N, 1x400N with hanging rods

The decline speed of the motor shaft: it is adjustable

The movable measurement drill: L * W * H =14.5 * 17 * 48

The fixed measurement drill: L * W * H =28*22*79

When hanging the weight of 1100N, the height of the weight from the mounting plate bottom is 60mm. when hanging the weight of 800N, the height of the weight from the mounting plate bottom is 45mm. when hanging the weight of 400N, the height of the weight from the mounting plate bottom is 20mm.

The latch decline displacement＜1.5 0 -0.1mm,adjustable

Ambient temperature: 0-40°C, humidity≤85%RH
